Efficient Barcode Labeling Solutions for VBM Box LR35 Containers and Trays

Barcode Labels for VBM Box LR35

Containers and Trays

Important Information Only commercially available containers with a closed, double bottom approved by Kardex Produktion Deutschland GmbH may be stored. Manufacturer-specific containers must be submitted for testing and approval via a price inquiry to the Neuburg plant.

Containers and trays must be equipped with a barcode label for both visual and automatic recognition.

We recommend labeling containers and trays so that the barcode and number are on the front, while only the number is on the back. This makes it easy to verify if the container is stored in the correct orientation. For containers with multiple storage locations, this is essential to avoid displaying incorrect items. All containers must be labeled consistently.

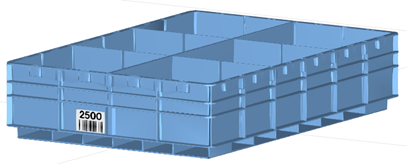

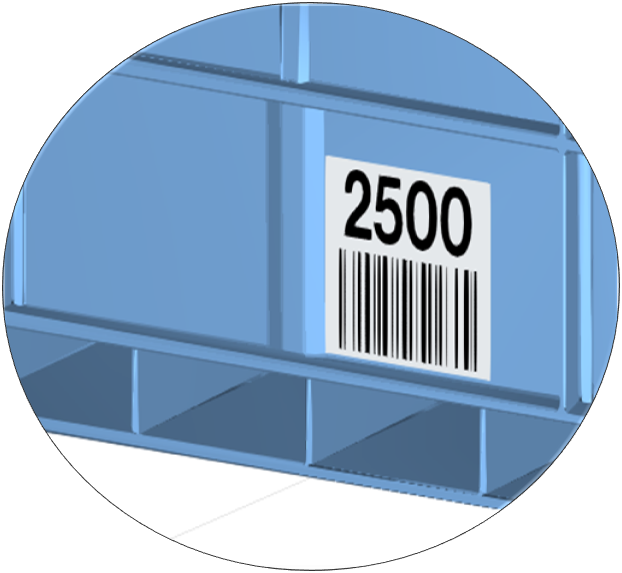

Due to the center bar on the VBM Box, labels cannot be placed in the middle. Therefore, labels must be positioned as close as possible to the center bar, either to the left or to the right.

Label sizes must fit the corresponding area on the container. Below is the example for the VBM Box

The barcode must have a height of at least 20 mm. Using the Kardex software, the LR35 uses 7-digit numbers as standard (numeric only, including leading zeros). For example: 0000001, 0000010, 0000124, etc.

Important Information:

The lateral distance (quiet zone) between the edge of the label and the first bar of the barcode must be 3 to 4 times the maximum width of the widest space between the barcode bars.

Barcode Scanner Specifications

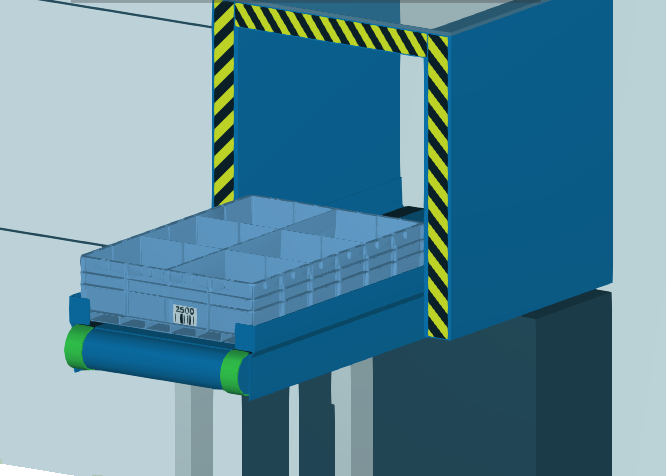

The conveyor connection is equipped with a stationary barcode scanner.

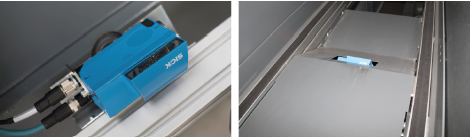

SICK CLV631-2120 Barcode Reader:

  • Manufacturer: SICK AG

  • Type: CLV631-2120

  • Resolution: 0.25 … 0.5 mm (depending on type)

  • Raster Height: 15 mm (8 lines) at a reading distance of 200 mm (front reading window)

  • Barcode Print Contrast (PCS): ≥ 60%

  • Ambient Light Tolerance: 2,000 lx (on the barcode)

  • Laser Class: 2 (IEC 60825-1:2014)

  • Number of Barcodes per Scan: * 1 … 20 (Standard decoder)

    • 1 … 6 (SMART decoder)

  • Number of Barcodes per Reading Gate: 1 … 50 barcodes (self-determining)

  • Supported Barcode Types: Code 39, Code 128, Code 93, Codabar, EAN, EAN 128, UPC, 2/5 Interleaved

  • Barcode Length: Max. 50 characters (max. 5,000 characters for all barcodes per reading gate; 500 characters with multiplexer function (CAN))

  • Print Ratio: 2:1 … 3:1
